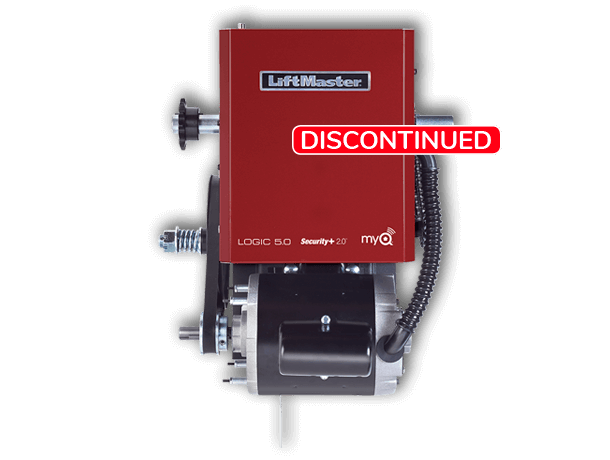

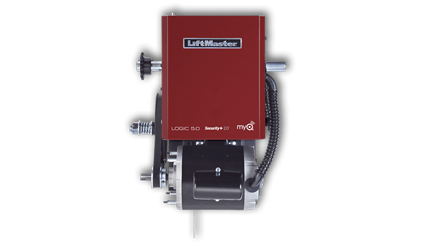

LiftMaster J electric garage door opener

Features

The J Model is an industrial-duty jackshaft door opener, as manufactured by The Chamberlain Group and is for use on vertical or high lift sectional doors, rolling doors and grilles. It is rated for 25 cycles per hour during peak periods. Up to 80-90 cycles/day.

  • Drive system: chain hoist
  • Voltage/phase:
    • Single-Phase: 115 V and 230 V
    • 3-Phase: 208 V, 230 V and 460 V, 575 V
  • Horse power: available in ½, ¾ and 1 HP
  • Minimum side room required: 20 in (508 mm)
  • All operators are factory preset to C2 wiring, providing momentary contact to open and stop, with constant contact to close. Monitored entrapment protection, using approved photo sensors CPS-U are standard. All other wiring types, B2, T, TS and FSTS, can be selected with the selection of a switch. LiftMaster CPS-UN4 and CPS-RPEN4 photo sensors or a monitored 4-wire sensing edge (via a CPS-EI Edge Interface Card) are optional. Logic 4.0 door openers can only accept UL-approved LiftMaster CPS-U, CPS-UN4, CPS-RPEN4 or CPS-EI monitored entrapment protection devices.
  • Continuous-duty high-starting hoist operator with instant reverse.
  • Removable hinged electrical box cover.
  • 24V NEC Class 2 Circuit with 40 VA transformer
  • Capacitor start on single-phase.
  • Motor is removable without affecting limit switch settings.
  • Universal mount frame design.
  • First-stage heavy-duty 5L V-Belt; second and third stages #48 chain; #50 drive chain.
  • Industrial ball bearings on 1 in (25.4 mm) output shaft; heavy-duty oil-filled iron bearings on reduction shafts.
  • Adjustable friction clutch helps protect against major damage to door and operator should the door meet an obstruction.
  • The maximum run timer signals the door to reverse or stop if closing time exceeds maximum by more than 10 seconds.
  • Provides emergency manual operations using an electrically interlocked floor level disconnect and chain hoist mechanism.
  • Motor overload protection.
  • NEMA 1 type electrical box, heavy-duty 11-gauge steel frame with durable powder coat finish, all reduction sprockets drilled and pinned to shafts.
  • 1.5 second delay-on-reverse circuit to prevent premature door and opener wear.
  • The Timer-to-Close automatically closes the door - programmable in 1-second or 15-second increments.
  • The mid-stop stops the door at programmable mid-stop during open travel.
  • Maintenance alert system (5 000 to 10 000 cycles)
  • UL and CSA listed.
  • 2-year warranty.
  • Factory installed heavy-duty electrical brake (On ¾ HP and 1 HP, optional on ½ HP)

Standard security systems

Your security, our priority!

Security+ 2.0 ®

Security+ 2.0 ® radio receiver is standard on-board with Logic 5.0 operators and virtually eliminates radio frequency interference. Accepts up to 90 1‑button or 30 3‑button remote controls plus up to 30 wireless keypads or an unlimited number of DIP switch remote controls

Standard Security plus

CPS® Commercial Protector System®

CPS‑U photo eyes are shipped with unit. They project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Alternate entrapment protection devices may be used or added, such as light curtains and optical edge systems.


Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Security+ 2.0 ®

Standard Security plus

Security+ 2.0 ® radio receiver is standard on-board with Logic 5.0 operators and virtually eliminates radio frequency interference. Accepts up to 90 1‑button or 30 3‑button remote controls plus up to 30 wireless keypads or an unlimited number of DIP switch remote controls


CPS® Commercial Protector System®

CPS‑U photo eyes are shipped with unit. They project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Alternate entrapment protection devices may be used or added, such as light curtains and optical edge systems.


Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.



Included in package

LiftMaster J electric garage door opener
J door operator
3-button NEMA 1 station (02103)
3-button NEMA 1 station with MAS (02103L)
(Maintenance Alert System)
Photoelectric sensors (CPS-U)
Photoelectric sensors (CPS-U)
Chain spreader (4000000714)
Chain spreader (4000000714)

Remote(s) optional

Hardware for installation included
